HYMAX® 2 WIDE-RANGE COUPLING

Hymax USA has introduced its new wide-range HYMAX 2 Coupling, the next-generation HYMAX.

Used for section replacement, HYMAX 2 connects two pipes of the same or different OD pipes and materials, up to 1.3” range.

HYMAX 2 is based on the original game-changing HYMAX that has been field-proven in millions of installations in the US:

  1. HYMAX 2’s patented flip gasket can be easily flipped in or out to accommodate different pipe OD’s
  2. Advanced no-tear gasket technology for maximum installation efficiency
  3. Only 2 top-facing bolts = faster, easier, safer installation
  4. Dynamic deflection of 4° per side – reducing future pipe damage
  5. Suitable for most types of pipes – ductile iron, cast iron, steel, copper, PE, PVC, AC.

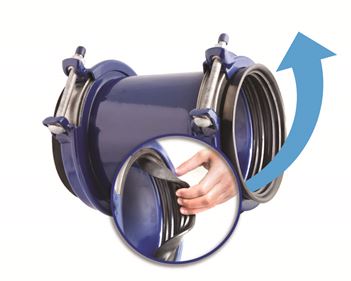

    Just flip the No-tear gasket from the inside out to accommodate larger OD pipes.

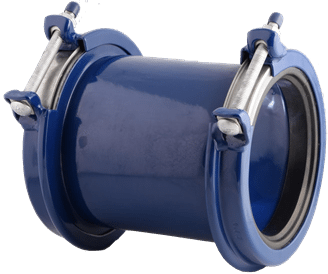

  Closed gasket position  Flip the gasket for wider range





                                                                                                                                                      SIZES 1.5″ to 12″





















pdf HYMAX 2 Installation Instructions (1.5" - 12") - coupling, long body, cathodic
pdf HYMAX 2 Coupling Product Specifications
HYMAX 2 INSTALLATION
Hymax 2 The Next Generation Coupling
pdf Pipe Repair Brochure

Nominal Pipe Size
1.5” – 12”
Working Pressure
260 psi
Torque
SEE PRODUCT SPECIFICATIONS
Top Facing Bolts
2
